UI

Summary

This page summarizes all aspects of the user interface (UI) system, which is responsible for designing custom menus and transitions.

Design decisions

This template makes the following design decisions regarding the default way Unity handles UI:

UI system

Unity UI (uGUI) is one of Unity’s core packages. It is a GameObject-based UI system that uses Components and the Game View to arrange, position, and style user interfaces. Because it is a runtime-GUI system it cannot be used to create or change user interfaces in the Unity Editor.

In 2021 Unity released a new UI system called UI Toolkit. Inspired by standard web technologies, it was designed to be used by anyone who has experience developing web pages or applications since the knowledge is transferable and the core concepts are familiar. Unlike uGUI, UI Toolkit can create both runtime and Editor UI.

Warning

Unity currently recommends using UIToolkit since they plan on removing the legacy uGUI in the future.

Info

The current release of UI Toolkit does not have some features that uGUI can still support. Some older, legacy projects may also still use uGUI. Check out Unity's official comparison of the two UI systems.

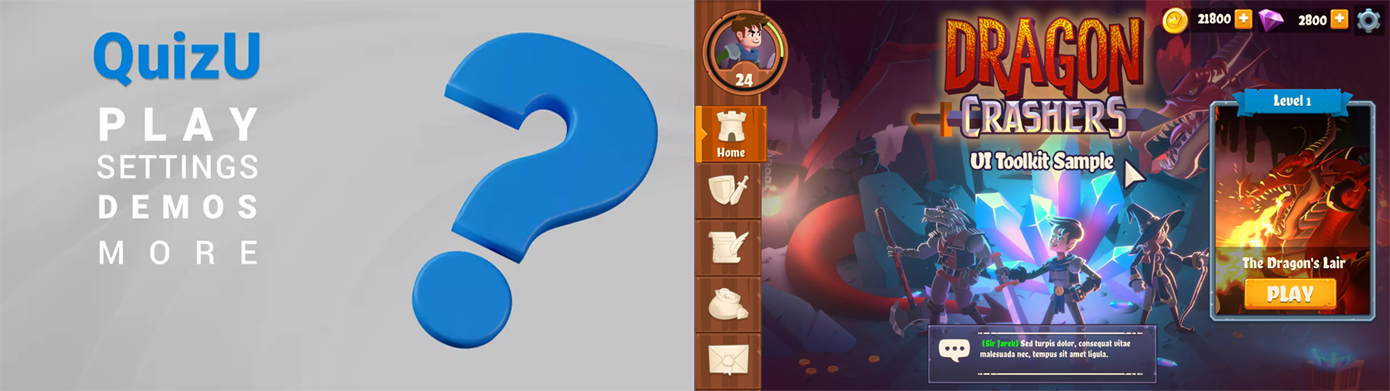

This template uses Unity's new UI Toolkit system. See Unity’s sample projects QuizU and Dragon Crashers for a full demonstration of UI Toolkit's tools and functionality.

Cursor

In Unity the default hardware cursor can be set at Edit > Project Settings > Player where a custom Texture 2D can be assigned. It can then be controlled using Unity's built-in Cursor API. This sprite, however, cannot be scaled dynamically and is limited to a dimension of 32x32 on Windows.

To change this we have created our own custom CursorController. It is a software cursor (so it will lag slightly behind compared to the default hardware cursor) that can scale dynamically and has no size limit.

UI folder

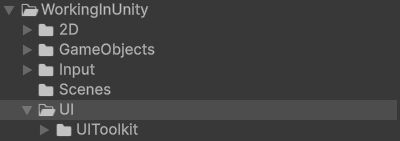

The non-code files in this section are at BeatEmUpTemplate/Assets/WorkingInUnity/UI.

UI Toolkit

The non-code files in this section are in the UIToolkit subfolder.

Fonts

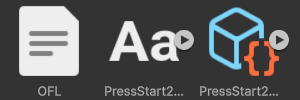

Each font subfolder contains its license, its font, and its font assets. Font assets act as containers for fonts so that they can serve as the basis for variations without changing the original font.

This template only uses one font: PressStart2P-Regular.ttf.

PanelSettings

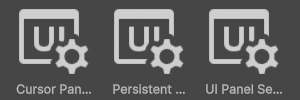

PanelSettings assets instantiate panels at runtime, where Unity displays UXML-file based UI in the Game view. UIDocument components need a reference to a PanelSettings asset so that they know which panel to display their content on.

UIPanelSettings.asset defines the bottom panel, which is used for UIViews and the great majority of the user interface. It is referenced by the UIDocument component on the UIManager GameObject in the Boot, TItle, and Training scenes.

CursorPanelSettings.asset defines the middle panel, which is used for the mouse cursor that exists above the UI but below screen transitions. It is referenced by the UIDocument component on the Cursor GameObject in the Persistent scene.

PersistentPanelSettings.asset defines the top panel, which is used for screen transitions. It is referenced by the UIDocument component on the UIManager GameObject in the Persistent scene.

ThemeStyleSheets

ThemeStyleSheet files are USS files that Unity uses for management purposes. They are referenced by PanelSettings assets and applied to their panels.

UnityDefaultRuntimeTheme.tss is the default ThemeStyleSheet that is automatically created by Unity when the first UIDocument is added to a GameObject.

VisualTrees

VisualTree files depict hierarchy relationships between VisualElements. They can represent scenes, screens, or even custom VisualElements themselves. VisualTrees are created via Assets > Create > UI Toolkit > UI Document.

When a VisualTree is created in UIBuilder it automatically generates the underlying Unity Extensible Markup Language (UXML) and UnityStyleSheet (USS) code while providing a preview for reference. UXML and USS are UIToolkit equivalents to HTML and CSS in web design and have similar functionality by design.

VisualTrees representing entire scenes are referenced by the UIDocument component on the UIManager GameObject in the Persistent, Boot, TItle, and Training scenes.

Scripting

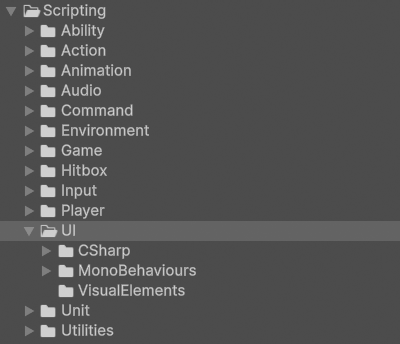

The code files in this section are at BeatEmUpTemplate/Assets/Scripting/UI.

CSharp

These scripts are not meant to be attached to GameObjects in the scene. Many of them represent static event classes that are meant to be invoked or are abstract classes representing concepts.

UIEvents

classDiagram
    class PersistentUIEvents{
    }
    class BootUIEvents{
    }
    class TitleUIEvents{
    }
    class StageUIEvents{
    }

UIEvents contain all events related to the user interface.

PersistentUIEvents.cs contains all UIEvents unique to the Persistent scene. This includes things like fade transitions which exist on the persistent level and can be invoked from any scene.

BootUIEvents.cs contains all UIEvents unique to the Boot scene. This includes things like signaling when sections of the Company Logo have been displayed or when the Title scene has been successfully preloaded.

TitleUIEvents.cs contains all UIEvents unique to the Title scene. This includes things like signaling when menu options are moused over or clicked.

StageUIEvents.cs contains all UIEvents unique to Stage scenes. This includes things like showing the pause screen or updating player health bars.

Note

For this template we've defined stages as scenes where the main gameplay takes place. For now this is just the Training scene, but the stage designation also includes any future levels.

UIViews

classDiagram
    UIView <|-- UGUIView
    UIView <|-- UIToolkitView
    UGUIView <|-- SplashView
    UIToolkitView <|-- FaderView
    UIToolkitView <|-- MainMenuView
    UIToolkitView <|-- OptionsView
    UIToolkitView <|-- GameplayView
    UIToolkitView <|-- PauseView
    UIToolkitView <|-- ContinueView
    UIToolkitView <|-- GameOverView
    UIToolkitView <|-- CompleteView
    class UIView{
        <<Abstract>>
    }
    class UGUIView{
        <<Abstract>>
    }
    class UIToolkitView{
        <<Abstract>>
    }

UIViews contain the various elements that make up the user interface for each screen. They communicate with their respective ScreenController using UIEvents classes to create an interactive user interface.

The UIView class has two direct children: UGUIView and UIToolkitView. These classes are used to create views for Unity's uGUI and UI Toolkit systems, respectively.

UIView	Represents	Used by	Works with	Using
FaderView	Fader screen	Persistent scene	FaderScreenController	PersistentUIEvents
SplashView	Splash screen	Boot scene	SplashScreenController	BootUIEvents
MainMenuView	MainMenu screen	Title scene	MainMenuScreenController	TitleUIEvents
OptionsView	Options screen	Title scene	OptionsScreenController	TitleUIEvents
GameplayView	Gameplay screen	Stage scenes	GameplayScreenController	StageUIEvents
PauseView	Pause screen	Stage scenes	PauseScreenController	StageUIEvents
ContinueView	Continue screen	Stage scenes	ContinueScreenController	StageUIEvents
GameOverView	GameOver screen	Stage scenes	GameOverScreenController	StageUIEvents
CompleteView	Complete screen	Stage scenes	CompleteScreenController	StageUIEvents

Note

For this template we've defined stages as scenes where the main gameplay takes place. For now this is just the Training scene, but the stage designation also includes any future levels.

MonoBehaviours

These scripts are meant to be attached to GameObjects in the scene as components and inherit from Unity's MonoBehaviour class.

CursorControllers

classDiagram
    class CursorController{
    }

CursorControllers control the logic of the software cursor sprite. This includes things like dynamically updating its position, size, and visibility.

CursorController.cs represents a basic, general-purpose CursorController used by the template. This component can be found attached to the Cursor GameObject in the Persistent scene.

FloatingHealthBarControllers

classDiagram
    class FloatingHealthBarController{
    }

FloatingHealthBarControllers control the logic of floating health bars. This includes things like updating the floating health bar's position to follow a specific unit.

FloatingHealthBarController.cs represents a basic, general-purpose FloatingHealthBarController used by the template. This component can be found attached to the FloatingHealthBar prefab. These prefabs are instantiated as children of the FloatingHealthBarManager GameObject in the Training scene at runtime.

FloatingHealthBarManagers

classDiagram
    class FloatingHealthBarManager{
    }

FloatingHealthBarManagers manage the lifetimes of floating health bars. This includes things like registering and unregistering units to give them their own floating health bar.

FloatingHealthBarManager.cs represents a basic, general-purpose FloatingHealthBarManager used by the template. This component can be found attached to the FloatingHealthBarManager GameObject in the Training scene.

ScreenControllers

classDiagram
    class FaderScreenController{
    }
    class SplashScreenController{
    }
    class MainMenuScreenController{
    }

classDiagram
    class OptionsScreenController{
    }
    class GameplayScreenController{
    }
    class PauseScreenController{
    }

classDiagram
    class ContinueScreenController{
    }
    class GameOverScreenController{
    }
    class CompleteScreenController{
    }

ScreenControllers control the logic of a screen used by a scene. This includes things like determining what happens when a specific button is clicked. They communicate with their respective UIView using UIEvents classes to create an interactive user interface. These components can be found attached to GameObjects of the same name that are children of the ScreenControllers GameObject in their respective scenes.

UIView	Controls logic for	Used by	Works with	Using
FaderScreenController	Fader screen	Persistent scene	FaderView	PersistentUIEvents
SplashScreenController	Splash screen	Boot scene	SplashView	BootUIEvents
MainMenuScreenController	MainMenu screen	Title scene	MainMenuView	TitleUIEvents
OptionsScreenController	Options screen	Title scene	OptionsView	TitleUIEvents
GameplayScreenController	Gameplay screen	Stage scenes	GameplayView	StageUIEvents
PauseScreenController	Pause screen	Stage scenes	PauseView	StageUIEvents
ContinueScreenController	Continue screen	Stage scenes	ContinueView	StageUIEvents
GameOverScreenController	GameOver screen	Stage scenes	GameOverView	StageUIEvents
CompleteScreenController	Complete screen	Stage scenes	CompleteView	StageUIEvents

Note

For this template we've defined stages as scenes where the main gameplay takes place. For now this is just the Training scene, but the stage designation also includes any future levels.

UGUIControllers

UGUIControllers are components attached to a uGUI GameObject that represent its logic.

CompanyLogoController

classDiagram
    class CompanyLogoController{
    }

CompanyLogoController.cs is responsible for directing the animation of the company logo.

UIManagers

classDiagram
    UIManager <|-- PersistentUIManager
    UIManager <|-- BootUIManager
    UIManager <|-- TitleUIManager
    UIManager <|-- StageUIManager
    StageUIManager <|-- TrainingUIManager
    class UIManager{
        <<Abstract>>
    }

UIManagers manage the lifetimes of UIViews within a scene. This includes things like creating, showing, and hiding screens when needed.

UIManager.cs defines what is common across all UIManagers, regardless of game. This includes things like referencing a Canvas (for uGUI) or UIDocument (for UI Toolkit), and maintaining a data structure that contains all the UIViews its managing.

PersistentUIManager.cs defines UIManager behaviour unique to the Persistent scene, like showing the Fader screen for fade-from or fade-to transitions. This component can be found attached to the UIManager GameObject in the Persistent scene.

BootUIManager.cs defines UIManager behaviour unique to the Boot scene, like showing the Splash screen by default. This component can be found attached to the UIManager GameObject in the Boot scene.

TitleUIManager.cs defines UIManager behaviour unique to the Title scene, like toggling between the MainMenu screen and the Options screen. This component can be found attached to the UIManager GameObject in the Title scene.

StageUIManager.cs defines UIManager behaviour unique to stage scenes, like showing the Gameplay screen by default or toggling between the Pause, Continue, GameOver and Complete screens.

TrainingUIManager.cs defines UIManager behaviour unique to the Training scene, like changing the text color in the footer to suit the background. This component can be found attached to the UIManager GameObject in the Training scene.

Note

For this template we've defined stages as scenes where the main gameplay takes place. For now this is just the Training scene, but the stage designation also includes any future levels.

VisualElements

These scripts contain objects that are part of the UIElements visual tree and inherit from Unity's base VisualElement class.

HealthBar

classDiagram
    class HealthBar{
    }

HealthBar.cs is a custom VisualElement that represents a unit's health. The size of its foreground element relative to its background element visually indicates a unit's current health relative to its maximum health. It can fill either horizontally or vertically.
